PHILIPS BDX91 NPN Silizium Leistungs Transistor 80V 8A 90W TO-39
- Order number: SW10842
Zum Verkauf steht hier ein
PHILIPS
BDX91
NPN Leistungs - Transistor
im TO-3... more

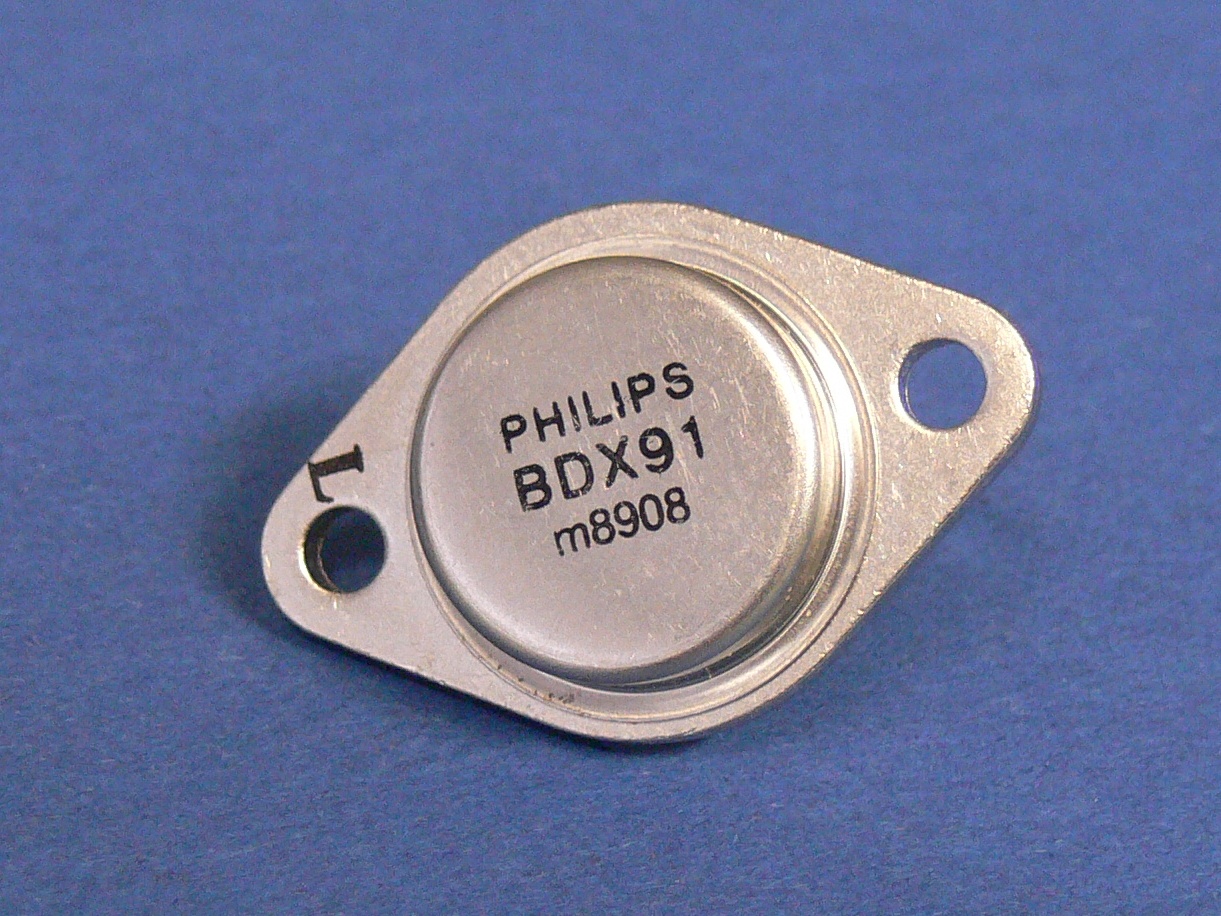

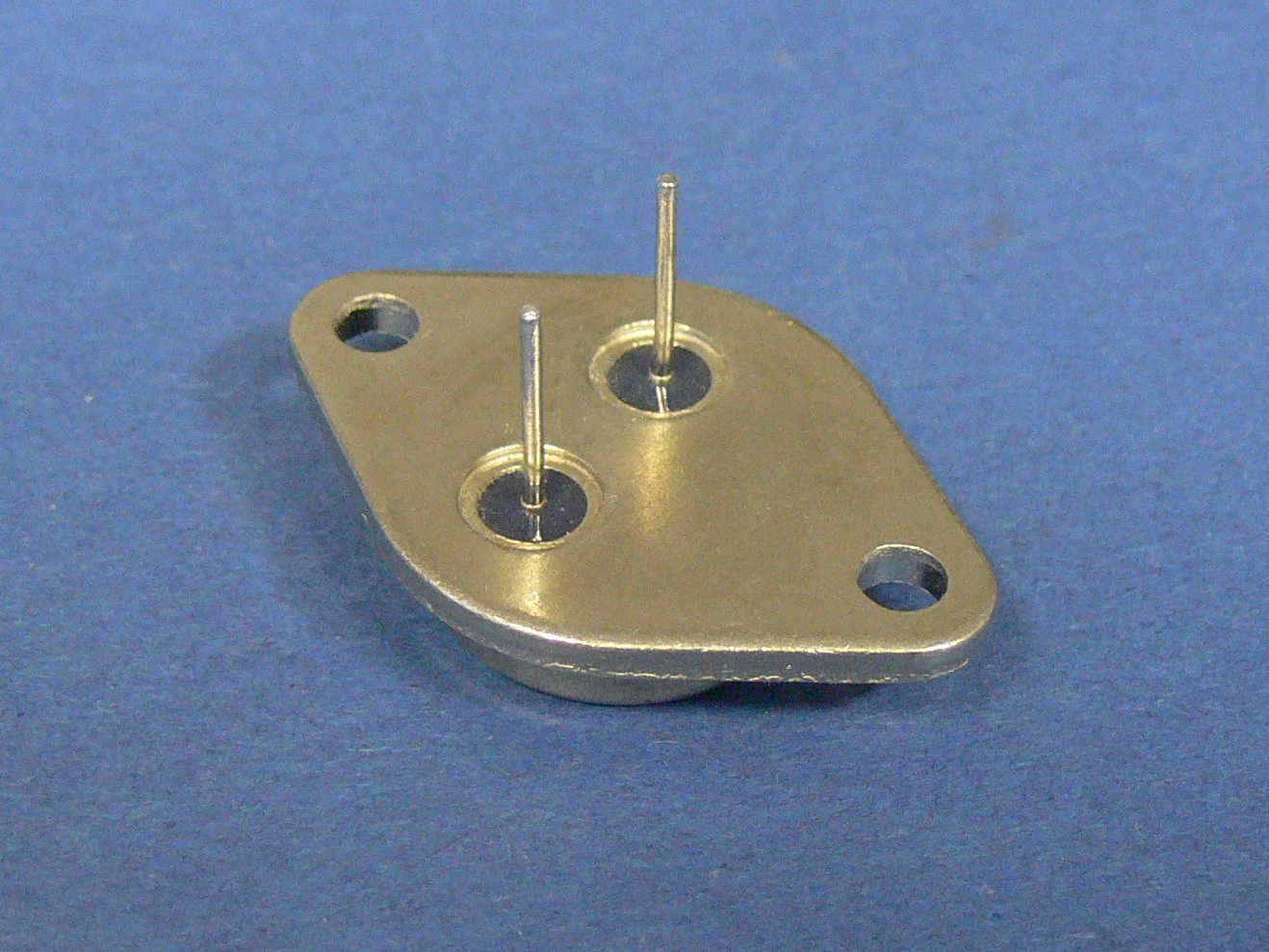

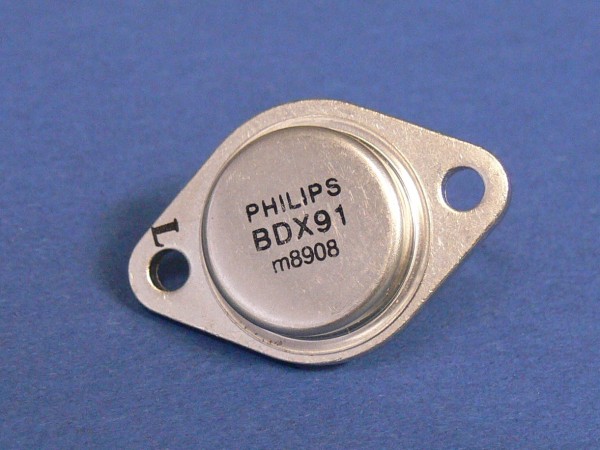

Product information "PHILIPS BDX91 NPN Silizium Leistungs Transistor 80V 8A 90W TO-39"
Zum Verkauf steht hier ein
PHILIPS
BDX91
NPN Leistungs - Transistor
im TO-3 Gehäuse
Unbenutzte Neuware
New old stock NOS
Technische Daten:
Type Designator: BDX91
Material of Transistor: Silizium
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 90 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Package: TO3
Material of Transistor: Silizium
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 90 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 4 MHz
Forward Current Transfer Ratio (hFE), MIN: 20
Package: TO3
